Basic Info.
Dimension(L*W*H)
128*17*4mm
Max Temperature
1200 Degrees Celsius
Warranty
1 Year
Application
Pellet Stove Igniter, Furnace Igniter, Wood Pellet
Transport Package
Cartons and Wooden Box
Specification
Custom
Origin
Jiangsu, China
HS Code
8516800000
Production Capacity
20000 Pieces/Month
Product Description

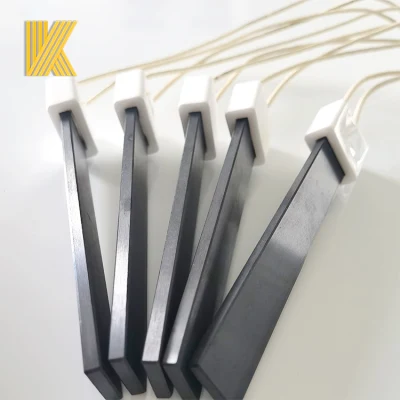

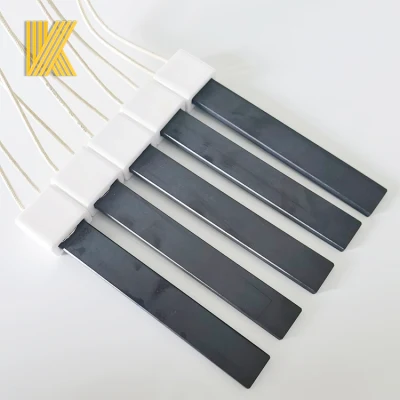

Silicon nitride heaters are normally in rectangular shape. Alloy wire is wrapped in dense silicon nitride ceramic body, where silicon nitride plays the role of heat transfer medium. These igniters have a lot operation zone up to 1000 degree C, and a cold zone in the contact area. Encapsulated terminal can prevent short circuit caused by conductive contamination. They can be operated with or without a controller. Silicon nitride igniters have several times the durability than that of silicon carbide products. Silicon nitride igniter can heating up to 800 to 1000 degree within tens of seconds.
Silicon nitride ceramic igniter can sustain corrosion of melting metals. With proper instatllation and igniting process, the igniter can several years.
Silicon nitride ceramic heater is only 4 mm thickness. The maximum safe heat load can reach 70 W/cm , only 1/3 in size compared with traditional electric heater. Dimension, power and input voltage are customized according to your requirement.
| Item: | 220v 230v 600w Si3N4 Silicon Nitride Ceramic Heater Igniter For Biomass Burner | |||
| Voltage: | 110v, 220v-240v | |||
| Power: | 600w--900w | |||
| Material: | Hot Pressed Silicon Nitride | |||
| Temperature: | 500--1200 degree C | |||
| Application: | Pellet stove igniter, wood pellet igniter etc. | |||
Silicone Nitride Igniter Advantage
* Silicone nitride igniter has very long life span,no breakage and no attenuation after 100000 cycles of life testing
* Silicone nitride igniter has very long life span,no breakage and no attenuation after 100000 cycles of life testing
* Big hot area,ensure successful ignition
* High efficiency,17 s reach 1000ºC
* Stable thermal function,no thermal and power attenuation,steady temperature 1100-1200ºC.
* High strength,toughness and hardness,anti-oxidation and anti-corrosion
Silicone Nitride Igniter Application
* Ignition of solid fuels (e.g. wood pellets)
* Ignition of gas or oil
* Reburning or igniter of exhaust fumes
* heating of process gases
* Pyrotechnics
* Brazing machines
* Heater for corrosive atmosphere
* R&D - laboratory equipment, measuring and testing equipment, reactors
* Tool heating
* Charcoal barbecue grill
* Ignition of solid fuels (e.g. wood pellets)
* Ignition of gas or oil
* Reburning or igniter of exhaust fumes
* heating of process gases
* Pyrotechnics
* Brazing machines
* Heater for corrosive atmosphere
* R&D - laboratory equipment, measuring and testing equipment, reactors
* Tool heating
* Charcoal barbecue grill
| MODEL | DIMENSION | PARAMETER | |||||||
| L | LH | WH | LA | WA | DA | DH | VOLTAGE(V) | POWER(W) | |
| KYSN-138 | 138 | 94 | 17 | 23 | 25 | 12 | 4 | AC220-240 | 700/450 |
| KYSN-128 | 128 | 84 | 17 | 23 | 25 | 12 | 4 | AC220-240 | 600/400 |
| KYSN-95 | 95 | 58 | 17 | 23 | 25 | 12 | 4 | AC220-240 | 400 |
| KYSN-52 | 52 | 15 | 17 | 23 | 25 | 12 | 4 | AC110 | 100 |
| KYSN-135 | 135 | 98 | 23 | 23 | 31 | 12 | 4 | AC220-240 | 900/600 |
| KYSN-115 | 115 | 76 | 30 | 25 | 38 | 12 | 4 | AC220-240 | 900/600 |
