Basic Info.
Model NO.
ANG-Sic01
Size
1mm ~ 20mm
Grade
G5, G10
High Temp.
800
Hardness
75-80HRC
Feature
High Hardness,High Precision,Corrosion Resistant
Transport Package
5kg Per OPP Bag
Specification
2mm 2.38mm 2.5mm 3mm 4mm 5mm 6mm
Trademark
ANG
Origin
Guangdong, China
HS Code
6909110000
Production Capacity
100, 000PCS Per Month
Product Description

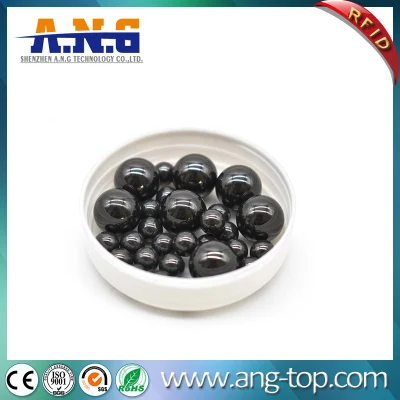

2mm 2.38mm 2.5mm 3mm 4mm 5mm 6mm G5 G10 Si3N4 Silicon Carbide Bearing Ball Sic Ceramic Balls
PACKAGING
Advantages of silicon nitride ceramic ball:
1, high hardness. The Vickers hardness of ordinary Gcr15 bearing steel is 800HV, while the hardness of silicon nitride ceramic ball is more than 1700HV.
2, high wear resistance. Take the process of processing products in our company as an example, ordinary steel ball mill processing (margin of one millimeter) takes about 2-4 hours, while the silicon nitride ball processing takes at least 150-200 hours.
3, corrosion resistance. The stability of ceramic materials is the best, especially silicon nitride ball, almost no chemical reaction with any substance, widely used in petroleum, chemical, food and other industries that need to come into contact with strong oxidizing agents and strong reducing agents.
4, high temperature resistance. Ceramic ball in the sintering process to experience thousands of degrees Celsius high temperature and a lot of pressure, its internal molecular structure is very stable, the arrangement is very dense, which makes its coefficient of thermal expansion is very low, the change in temperature has almost no effect on the size of its structure. The working temperature of ceramic ball can reach 1200 degrees Celsius or even higher, low temperature also has little effect on it, so it is widely used in the aerospace field.
5, light weight. The weight of ceramic ball is only 50%-60% of the weight of ordinary steel ball, which is promising in the field of bearings and aerospace.
6, self-lubricating. Ceramic ball itself has good self-lubricating properties, high processing accuracy. Can reach G5, G10 level, ceramic ball wear-resistant as well as structural stability, not easy to deform, so it can be fine-tuned, applied to many special industries.
7, insulation. Ceramic has a good insulation effect.
1, high hardness. The Vickers hardness of ordinary Gcr15 bearing steel is 800HV, while the hardness of silicon nitride ceramic ball is more than 1700HV.
2, high wear resistance. Take the process of processing products in our company as an example, ordinary steel ball mill processing (margin of one millimeter) takes about 2-4 hours, while the silicon nitride ball processing takes at least 150-200 hours.
3, corrosion resistance. The stability of ceramic materials is the best, especially silicon nitride ball, almost no chemical reaction with any substance, widely used in petroleum, chemical, food and other industries that need to come into contact with strong oxidizing agents and strong reducing agents.
4, high temperature resistance. Ceramic ball in the sintering process to experience thousands of degrees Celsius high temperature and a lot of pressure, its internal molecular structure is very stable, the arrangement is very dense, which makes its coefficient of thermal expansion is very low, the change in temperature has almost no effect on the size of its structure. The working temperature of ceramic ball can reach 1200 degrees Celsius or even higher, low temperature also has little effect on it, so it is widely used in the aerospace field.
5, light weight. The weight of ceramic ball is only 50%-60% of the weight of ordinary steel ball, which is promising in the field of bearings and aerospace.
6, self-lubricating. Ceramic ball itself has good self-lubricating properties, high processing accuracy. Can reach G5, G10 level, ceramic ball wear-resistant as well as structural stability, not easy to deform, so it can be fine-tuned, applied to many special industries.
7, insulation. Ceramic has a good insulation effect.
| Product Name | Ceramic Bearing Balls |
| Material | Si3N4 |
| Other Material option | Si3N4/Al2O3/SIC |
| Grade | G3,G5 ,G10,G 16 ,G20,G28,G40...G100, ect |
| Size | 0.5-100mm |
| Density | 3.23g/cm³ |
| High Temp. | 800ºC |
| Hardness | 75-80HRC |
| Trade terms | T/T, Western Union, Paypal |
