Basic Info.
Model NO.
Hengchang-Shaking Table
Energy Saving
Energy Saving
Warranty
1 Year
Color
Customize
Customized
Customized
Condition
New
After-sales Service
Field Installation, Commissioning and Training
Production Capacity 1
94-98%, 0.8-2 T/H (Can Be Customized)
Product Voltage
380V/415V/440V(Can Be Customized)
Feeding Size
E-Waste, Placer/Gold,Tungsten,Tin.etc
Models Available
Ls4500, Ly3000, Ly2100,etc
Deck Material
Fiberglass Lined with Polyurethane
Feeding Size(Coarse Deck)
0.5-2mm(Can Be Customized)
Dimension(L*W*H)
4000*1000*1000mm(Can Be Customized)
Application Product
Gold, Tin, Chrome, Titanium, Manganes
Feeding Size(Slime Deck)
0.037-0.1mm(Can Be Customized)
Water Consumption
0.7-1 T/H, Water Can Be Recyle
Feeding Size(Fine Deck)
0.1-0.5mm(Can Be Customized)
Port 2
Qingdao, Tianjin, Lianyungang, Shanghai Guang
Feeding Size(Carse Deck)
0.5-2mm(Can Be Customized)
Transport Package
Standard Packing
Specification
CE, SGS, ISO9001, BV
Trademark
Hengchang
Origin
Henan, China
HS Code
847410000
Production Capacity
15-25 T/H

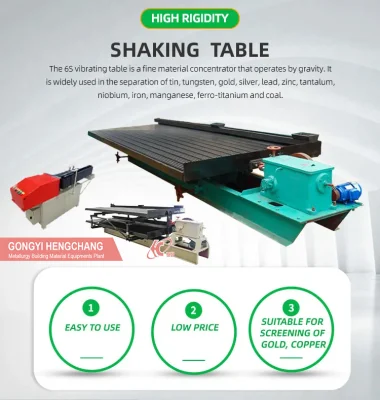

Product Description
| Factory hot sale small scale 6s mining equipment gold tungsten chrome manganese copper ore shaking table gold separation |
| Shaking table is widely used for sorting minerals. Its main function is sorting the rough and concentrate mixture after minerals gravity separating. (Such as rough concentrate sorted by jig and shaking table). Process particle size is ranging from 2 mm to 0.074 mm. The separating effect is especially for minerals with a variety of sulfide minerals. It has the following advantages compared with the gold table: it is easy to observe changes of slurry on shaking table; easy to operate; it has many different specifications for choosing. |
 |  |
| Model Performance | LS4500 | LY3000 | LY2100 | LY1100 | |
| Screen Size(mm) | 4500× 1850× 1560 | 3000× 1620× 1100 | 2100× 1050× 850 | 1100× 500× 430 | |
| Horizontal Slope | Degree | 0-5 | 0-10 | 0-8 | 0-10 |
| Feeding Range(mm) | Sand ore | -2 | -2 | -2 | -2 |
| slime | -0.074 | -0.1 | -0.074 | -0.074 | |
| Feeding Density | % | 10-30 | 10-30 | 10-30 | 10-30 |
| Capacity (t/h) | Sand ore | 0.5-1.8 | 0.7-1.5 | 0.4-0.8 | 0.1-0.2 |
| slime | 0.5-0.8 | 0.4-1 | 0.3-0.5 | 0.05-0.1 | |
| Water consumption | t/h | 0.4-0.7 | 0.3-1.5 | 0.2-1 | 0.1-0.5 |
| Motor power | kw | 1.1 | 1.1 | 1.1 | 0.55 |
| Dimension (mm) L× W × H | 5600× 1850× 860 | 4075× 1320× 780 | 3040× 1050× 1020 | 1530× 500× 800 | |
| Deck Weight(kg) | 370 | 310 | 180 | 50 | |
Product Application
| Manganese, gold shaking table widely uses in ores such as tungsten, tin, lead, zinc, gold, silver, tantalum, niobium,monacite,zircon, ilmenite planting the fissure filling or the placer ore dressing plant in processes the 3_0.019mm granularity ore in the rough sizing and the selection work. |
Product Details

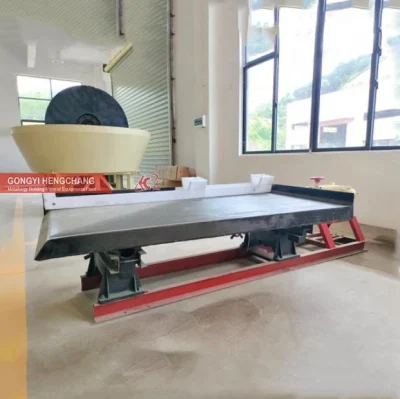

 | 6S 4450 Fixed Type Shaking Table Without mounting bracket, need to use concrete pouring cement casting pile to put shaking table, not convenient to move, but relatively save cost. |
 | 6S 4450 Small Channel Steel Shaking Table (12# steel) Easy to install, just need pour concrete to fix the anchor bolts on the ground, same effect compare with the normal shaking table, the price is moderate. Most clients like choose it. |
 | 6S 4450 Big Channel Steel Shaking Table ( 28# steel) More stable, more convenient, no need pour the concrete to fix the anchor bolts on the ground. Fast install and operation, easy to dismount and move, especially applycable to the uneven ground, false and virtual ground operation. |
Product Features
| Our new designed mineral shaking table is with better quality than normal 6s shaking table. 1.Table Desk of Shaking Table Separation: Made of emery,epoxy resin and fiberglass fabric. first-grade&most wear-resisting emery can make the table wearproof, long life time. More thicken fiberglass fabric can support the table more stable and stronger. 2.Feeding chute of Shaking Table Separation: The chute is made of PP material,wearproof.,the old type is wooden which is more easy to be broken. 3.Collection Chute of Shaking Table Separation: with PP collection chute can collect the concentrate and middling more conveniently, old type is iron sheet or without this chute. 4.Electric Motor of Shaking Table Separation: From China famous motor brand,.Also can make SIEMENS brand,customize motor as per request. 5.Channel Frame of Shaking Table: #28 big channel frame,50cm more height than normal, so can collect the minerals more conveniently 6.Bearing of shaker table: From China famous professional bearing manufacturer, Guaranteed quality, long life time. 7.Steel Plate of Gold Shaking Table: Steel material,5 mm thick, more thicker than normal (usually 2-4 mm thick) |
Working Principle
| The manganese, gold shaking table is shaken back and forth longitudinally, using a slow forward stroke and a rapid return strike that causes particles to raw along the deck parallel to the direction of motion. The lighter materials move up and over the riffles and down to exit on the tailings side of the table. Wash water is fed at the top of the table at right angles to the direction of table movement. These forces combine to move particles diagonally across the deck from the feed end and they separate out on the table according to size and density. Tables are most commonly used to recover gold from hard rock ores, but can also be used to recover other mineral materials of higher than normal density. They do an excellent job of recovering small gold particles, even with a fairly high feed rate. |
| According to different physical and chemical properties of different types of gold ores, flotation separation utilizes various reagents to make the gold attached to the bubbles then scraping these gold particles from blades to get the concentrate. |
Company Information
| Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and10,000 tons of crusher parts. |
Customer Visit & Our Service
| (A) Pre-sale services: Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments. 1.Select equipment model; 2.Design and manufacture products according to clients' special requirement; 3.Train technical personnel for clients; 4.Services during the sal. (B)Provide considerate services to minimize clients' worries: 1.Assist clients to prepare for the first construction scheme; 2.Install and debug the equipment; 3.Train the first-line operators; 4.Examine the equipment; 5.Take initiative to eliminate the troubles rapidly; 6.Provide perfect service; 7.Provide technical exchanges. (C).After-sale services:Provide considerate services to minimize clients' worries: 1.Assist clients to prepare for the first construction scheme; 2.Install and debug the equipment; 3.Train the first-line operators; 4.Examine the equipment; 5.Take initiative to eliminate the troubles rapidly; 6.Provide perfect service; 7.Provide technical exchanges. |
Customer Site Case
| Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers. Welcome to inquiry! |
Product & Packaging
| Packaging Details: Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing. Delivery Time: We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days. |
RFQ:
Q:Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years' experience.
2.Hengchang is the leading professional supplier of solution, equipment's and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
