Basic Info.
Model NO.
NELD-HPTC079
External Insulation
Rock Wool Insulation
Maximum Power
24kw/45kw
Average Powe
10kw/24kw
Tank Interior Space
300L, 528L
Transport Package
Sea Freight
Specification
large-size
Trademark
NELD
Origin
Xianghe
Product Description

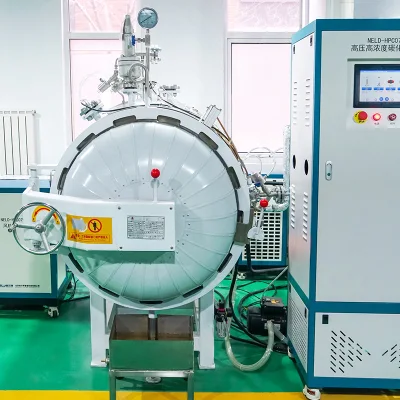

This machine is mainly composed of touch screen microcomputer control system, test kettle body, refrigeration system, heating system, humidification system. The microcomputer touch screen controls the temperature, humidity and CO2 concentration, and the test duration can be set arbitrarily. It has good control, display, record and protection functions.
The alkaline components of concrete materials can react chemically with atmospheric CO2 at a concentration of 0.04% under natural conditions in a very slow process, but carbonization of concrete can be achieved quickly by technical measures such as pressurization and warming. If used for carbonation curing of precast concrete components and precast products, relatively high strength can be obtained quickly.
The high-pressure, high-temperature and high-concentration carbonization reactor developed and produced by Naierd is tested under the conditions of setting the test environment and adjusting the concentration of CO2, temperature, humidity and pressure, which provides a reliable test environment for the research institutes of CO2 carbon solidification, carbonization conservation and geological sequestration as well as for the industrialized production enterprises that produce products for rapid carbonization and conservation
| CO2 concentration test range | 0~99.9% VOL |
| CO2 resolution | 2% F.S |
| CO2 sensor response time | ≤ 4s |
| Pressure control range | -0.09MPa~0.5MPa (high-pressure version -0.09MPa~1.0MPa) |
| Pressure control accuracy | 0.01MPa |
| Response time of pressure sensor | ≤ 1ms |
| Temperature control range | 20 ºC~150 ºC |
| Temperature resolution | 0.1 ºC |
| Temperature control accuracy | 1 ºC |
| Temperature sensor | Pt100 |
| Temperature sensor response time | ≤ 1s |
| Humidity control range | 10% RH~95% RH |
| Humidity resolution | 0.1% RH |
| Humidity control accuracy | 3% |
| Humidity sensor response time | ≤ 5s |
| Touch screen | 10.1-inch, Android touch screen interface |
| Control mode | fully automatic operation of the test process |
| Online display | CO2 concentration, temperature and humidity, pressure |
| Data display | curve display, list display |
| Alarm function | CO2 early warning, overpressure, overtemperature, water shortage |
| Test start protection | automatic judgment by software, start after kettle door closed |
| Kettle door opening protection | kettle temperature, pressure, CO2 concentration over the warning |
| Material of kettle body | 304 stainless steel |
| explosion-proof grade | Exd||CT6, The test box adopts round tank type |
