Basic Info.
Product Description
Product features:

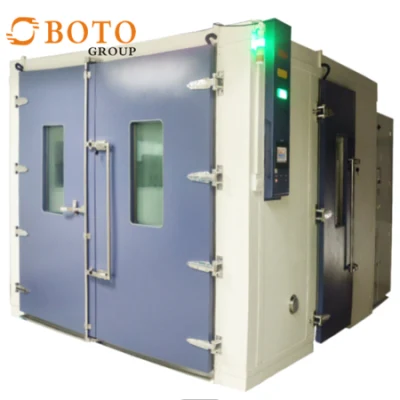

Step-in high and low temperature test box is a necessary test equipment in the new energy industry. It can carry out high temperature, low temperature, temperature cycle, rapid temperature change, high and low temperature alternating humidity and heat test according to IEC60068, MIL-STD-81OF, GJB150A, GB2423 and other standards. Its characteristics are as follows:
1.It can adopt integral structure or combination of reservoir plate units, the content area can be arbitrarily expanded and easy to disassemble and assemble
2.The insulating layer adopts high-strength polyurethane (PU) foaming and high-density glass fiber cotton, which can avoid energy loss
3.Multilayer filtration and water replenishing device and automatic water replenishing device. There is no need for manual water addition and automatic water scarcity protection.
4.Cases are equipped with test holes, which can be used for external test power lines or signal lines;
5.Modular refrigeration units can ensure manufacturing quality, and maintenance and replacement are very convenient;
6.Low temperature and continuous effective operation for0°C 1000 hours without frost, and temperature does not return. Rise.
Specifications | Product model | BT-E705-7-1 |
| temperature range | -50C TO +100C |
| humidity range | 40% TO 98% RH |
| dimension (internal) (w x d x h) | 1500 X 1500 X 3000 MM |
| dimension (external) (w x d x h) | 2850 X 1700 X 3200 MM |
| ramp | variable, temp. 0~5c / min & humidity 0~5%/min in average, no load |
| accuracy | temp. ±1c, humidity ±2.5%rh |
| interior walls | stainless steel 304 |
| exterior walls | cold rolled stell plate with baking finish |
| temperature & humidity measurement and controller | 32 bit control and monitoring system. interface facility with rs232 programmable temp. humid. controller |
| viewing window | multi pane glass window size |
| port holes | 50 mm diameter for wire routing |
| power supply requirement | three phase, ac380 v ± 10 %, 50 hz |
| sound pressure level | <72DB (A) |
| condenser cooling | water cooled |
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.
Onsite Service:
1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service
