Product Description
for preparation of metal elements

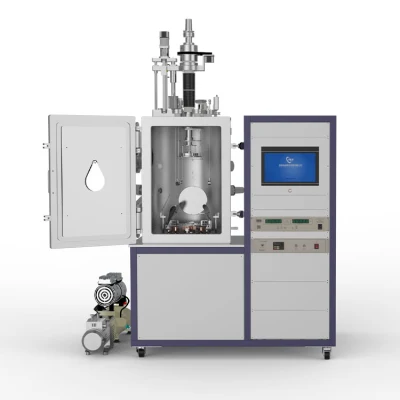

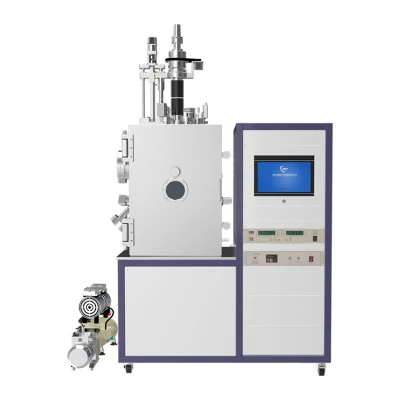

This equipment is multi-source high vacuum evaporation coater, the equipment adopts the front door vacuum chamber design, the chamber space is large, the expansibility is strong, can meet the evaporation coating of multiple large size samples. The chamber is equipped with an upper sample table, which can select the clamping or cassette type sample mounting parts according to the user's sample style. The sample table can be rotated, heated and lifted, all operations are integrated through the touch screen control. The vacuum pump group of the equipment is a two -stage vacuum system, which is composed of a bipolar rotary vane vacuum pump and a turbomolecular pump, which can provide a clean and oil-free high vacuum environment for vacuum coating test. The vacuum system contains a complete pneumatic valve system, the user can through the touch screen for one -click operation to achieve vacuum extraction, without stopping to take lofting, complete shutdown and other operations.
The evaporation source of the equipment is two groups, taking tungsten boat evaporation source, water-cooled copper electrode, can support the maximum 300A large current, heating temperature up to 1800ºC, can achieve a variety of refractory metal evaporation. The equipment adopts the integrated design, the cavity and the electric control part are separated from each other, which realizes the separation of water and electricity, and effectively ensures the safety of users. The electronic control part uses the combination of touch screen and button panel design, vacuum system, sample table and other auxiliary functions through the touch screen one -click operation, electrification evaporation, film thickness control through the panel independent operation, as convenient as possible to the user while avoiding the possibility of misoperation. The device has perfect design and superior performance, and is an essential choice for high-precision evaporation coating test in the laboratory.
high vacuum thermal evaporation coater technical parameters:
| Multi-source high vacuum evaporation coating instrument | ||
| Sample Table | Measurements | φ150mm sample |
| Height | 150mm adjustable up and down | |
| Evaporation source | Quantity | Tungsten Boat x2 |
|
Vacuum chamber | Cavity size | Phi 350 x600mm |
| Viewing window | Front φ100mm with blackout | |
| Cavity material | 304 stainless steel | |
| Opening method | Front door opening type | |
| Film thickness control | Crystal vibration type film thickness measuring instrument, optional multi-channel film thickness controller | |
| Vacuum System | Forepump | Bipolar rotary vane pump |
| Air extraction connector | KF16 | |
| Secondary pump | Turbo molecular pump | |
| Pumping interface | ISO160 | |
| Vacuum measurement | Resistance + ionization composite vacuum gauge | |
| Exhaust rate | Mechanical pump 1.1L/s Molecular pump 600L/s | |
| Ultimate vacuum | 1.0 e-5 Pa | |
| Power supply | AC 220V 50/60Hz | |
| Pumping rate | Rotary vane pump: 1.1L/S | |
| Flowmeter | Optional one mass flowmeter 500sccm Ar gas | |
| Control system | PLC automatic control operation interface: touch screen + operation panel | |
| Other | Supply voltage | AC220V,50Hz |
| Overall dimensions | 1200mm X 900mm X 1500mm | |
| Machine weight | 500kg | |
| Machine power | 5kW | |
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturer, having our own design team and factory with mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sale service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sale and after-sale departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. It is 5-10 days for stocking goods. 2. It usually takes 30-60 days for the customized goods depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to our customer's local requirements.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Made in China Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping etc., according to customer requirements to find the most suitable way.
More questions, please FEEL FREE to contact us.
