Basic Info.
Model NO.
Si3N4Beads
Technique
Pressure
Theme
Industrial
Style
Classical
Function
Thermostability, Thermal Insulation, Structral
Making Method
Machine Made
Usage
Textile, Chemical Industry, Electron, Electrical Appliance, Construction, Hygienic
Size
Customized
Advantage
Long Service Life
Color
Black
Applicable Industries
Hotels, Garment Shops, Building Material Shops
Transport Package
Plastic Bag, Wooden Box
Specification
20*20*20cm
Trademark
yinghua
Origin
China
HS Code
69010000
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
1.000kg

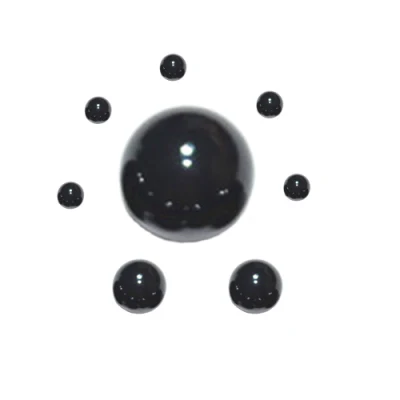

Product Description
Silicon nitride is an advanced ceramic material with high hardness, stable structure, small thermal expansion coefficient, excellent resistance to oxidation and erosion, and excellent thermal and chemical properties.
Silicon nitride ceramics are inorganic material ceramics that do not shrink when sintered. Silicon nitride has high strength, especially hot-pressed silicon nitride, and it is one of the hardest substances in the world.
The decomposition temperature of silicon nitride is 1800° C. in air and 1850° C. in 110 MPa nitrogen. Si3N4 has a low thermal expansion coefficient and high thermal conductivity, so it has excellent thermal shock resistance. The hot-pressed silicon nitride will not break when it is heated to 1000°C and put into cold water. At not too high temperatures, Si3N4 has high strength and impact resistance, but at 1200°C or more, it will break down with the increase of service time, lower its strength, and cause fatigue damage more easily above 1450°C, so Si3N4 The use of the temperature is generally not more than 1300 °C. Since Si3N4 has a low theoretical density and is much lighter than steel and engineering superalloy steels, it is appropriate to use Si3N4 ceramic instead of alloy steel in places where high strength, low density, and high temperature resistance are required. Now.
Si3N4 ceramics is an important structural material. It is a kind of super-hard material. It has lubricity and wear resistance. It does not react with other inorganic acids except hydrofluoric acid, and it has strong anti-corrosion ability and high temperature resistance. Oxidation. And it can also resist the thermal shock, heated in the air to more than 1,000 °C, rapid cooling and then sharp heating, it will not break. It is because of such excellent characteristics of Si3N4 ceramics, people often use it to make bearings Mechanical components such as gas turbine blades, mechanical seal rings, and permanent molds. If a silicon nitride ceramic that is resistant to high temperatures and does not easily transfer heat is used to produce the heating surface of the engine components, it can not only improve the quality of the diesel engine, save fuel, but also increase the thermal efficiency.the electronics industry.
Material's mechanical properties:
The products series include kinds of new materials such as structural products and functional ceramic products, such as Alumina, Aluminum Nitride, Zirconia, Silicon Nitride and Boron Nitride ceramics are the main products in the list. Zirconia derivative products such as high purity zirconia, Yttria stabilized zirconia(YSZ or Y-TZP), and Magnesia stabilized Zirconia(MgO-PSZ), and Ceria stabilized Zirconia(CeO-PSZ), structural zirconia ceramics, etc. For the zirconia products have many excellent properties such as high hardness, high strength and toughness, super low chemical and mechanical corrosive, insulated in common temperature, and magnetic proofing, so they are extensively applied in optic, electronic, mechanical and chemical industry, etc. And Alumina ceramics is more widely applied in industrial.
Tianjin Yinghua Material Tech Co.,Ltd is located in Tianjin City, China, which is the economic center of north China and with a convenient transportation and excellent business service.
The company insists the spirit of Products Innovating, Technology Service and Customer Value, and wish to develop with the customers and suppliers. All customers and friends are welcome!
Silicon nitride ceramics are inorganic material ceramics that do not shrink when sintered. Silicon nitride has high strength, especially hot-pressed silicon nitride, and it is one of the hardest substances in the world.
The decomposition temperature of silicon nitride is 1800° C. in air and 1850° C. in 110 MPa nitrogen. Si3N4 has a low thermal expansion coefficient and high thermal conductivity, so it has excellent thermal shock resistance. The hot-pressed silicon nitride will not break when it is heated to 1000°C and put into cold water. At not too high temperatures, Si3N4 has high strength and impact resistance, but at 1200°C or more, it will break down with the increase of service time, lower its strength, and cause fatigue damage more easily above 1450°C, so Si3N4 The use of the temperature is generally not more than 1300 °C. Since Si3N4 has a low theoretical density and is much lighter than steel and engineering superalloy steels, it is appropriate to use Si3N4 ceramic instead of alloy steel in places where high strength, low density, and high temperature resistance are required. Now.
Si3N4 ceramics is an important structural material. It is a kind of super-hard material. It has lubricity and wear resistance. It does not react with other inorganic acids except hydrofluoric acid, and it has strong anti-corrosion ability and high temperature resistance. Oxidation. And it can also resist the thermal shock, heated in the air to more than 1,000 °C, rapid cooling and then sharp heating, it will not break. It is because of such excellent characteristics of Si3N4 ceramics, people often use it to make bearings Mechanical components such as gas turbine blades, mechanical seal rings, and permanent molds. If a silicon nitride ceramic that is resistant to high temperatures and does not easily transfer heat is used to produce the heating surface of the engine components, it can not only improve the quality of the diesel engine, save fuel, but also increase the thermal efficiency.the electronics industry.
Material's mechanical properties:
| Silicon Nitride Ceramics Properties | |||
| Color | Gray | Density | 3.2g/cm3 |
| Melt Point | 1900ºC | Bending Strength | 1000MPa |
| Thermal Conductivity | 25 W/m.K | Thermal expansion coefficient | 2.7×10-6 K-1 |
| Specific heat | 800J/(Kg.ºC) | Volume resistivity | 1012Ω.cm |
| Dielectric constant | 8.3@1Hz | Hardness(Mohs) | 9 |
The products series include kinds of new materials such as structural products and functional ceramic products, such as Alumina, Aluminum Nitride, Zirconia, Silicon Nitride and Boron Nitride ceramics are the main products in the list. Zirconia derivative products such as high purity zirconia, Yttria stabilized zirconia(YSZ or Y-TZP), and Magnesia stabilized Zirconia(MgO-PSZ), and Ceria stabilized Zirconia(CeO-PSZ), structural zirconia ceramics, etc. For the zirconia products have many excellent properties such as high hardness, high strength and toughness, super low chemical and mechanical corrosive, insulated in common temperature, and magnetic proofing, so they are extensively applied in optic, electronic, mechanical and chemical industry, etc. And Alumina ceramics is more widely applied in industrial.Tianjin Yinghua Material Tech Co.,Ltd is located in Tianjin City, China, which is the economic center of north China and with a convenient transportation and excellent business service.
