Product Description

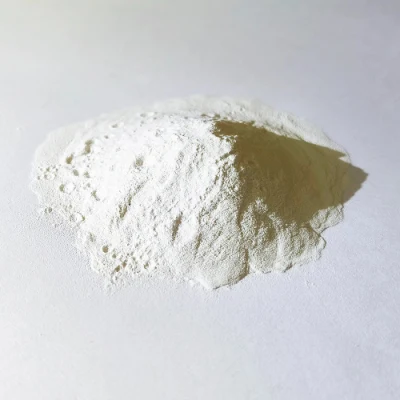

Zirconia Powder
Nano zirconia has the characteristics of high hardness, high-temperature resistance, chemical corrosion resistance, wear resistance, small thermal conductivity, strong thermal shock resistance, good chemical stability, outstanding composite material, etc. The properties of the material can be improved by combining nanometer zirconia with alumina and silicon oxide. Nano zirconia is not only used in structural ceramics and functional ceramics. Nano zirconia doped with different elements conductive properties, used in solid battery electrode manufacturing.
Very high melting point
Chemical stability at high temperatures
Low thermal expansion compared to metals
High mechanical resistance
Hardness (8 - 8.5 on Mohs scale)
Abrasion resistance
Corrosion resistance
Oxide ion conductivity (when stabilized)
Chemical inertia
Properties Type | Product types | ||||
| Chemical Composition | Normal ZrO2 | High purity ZrO2 | 3Y ZrO2 | 5Y ZrO2 | 8Y ZrO2 |
| ZrO2+HfO2 % | ≥99.5 | ≥99.9 | ≥94.0 | ≥90.6 | ≥86.0 |
| Y2O3 % | ----- | ------ | 5.25±0.25 | 8.8±0.25 | 13.5±0.25 |
| Al2O3 % | <0.01 | <0.005 | 0.25±0.02 | <0.01 | <0.01 |
| Fe2O3 % | <0.01 | <0.003 | <0.005 | <0.005 | <0.01 |
| SiO2 % | <0.03 | <0.005 | <0.02 | <0.02 | <0.02 |
| TiO2 % | <0.01 | <0.003 | <0.005 | <0.005 | <0.005 |
| Water Composition(wt%) | <0.5 | <0.5 | <1.0 | <1.0 | <1.0 |
| L.O.I(wt%) | <1.0 | <1.0 | <3.0 | <3.0 | <3.0 |
| D50(μm) | <5.0 | <0.5-5 | <3.0 | <1.0-5.0 | <1.0 |
| Surface area(m2/g) | <7 | 3-80 | 6-25 | 8-30 | 8-30 |
Properties Type | Product types | ||||
| Chemical Composition | 12Y ZrO2 | Yello Y stabilized ZrO2 | Black Y stabilized ZrO2 | Nano ZrO2 | Thermal spray ZrO2 |
| ZrO2+HfO2 % | ≥79.5 | ≥94.0 | ≥94.0 | ≥94.2 | ≥90.6 |
| Y2O3 % | 20±0.25 | 5.25±0.25 | 5.25±0.25 | 5.25±0.25 | 8.8±0.25 |
| Al2O3 % | <0.01 | 0.25±0.02 | 0.25±0.02 | <0.01 | <0.01 |
| Fe2O3 % | <0.005 | <0.005 | <0.005 | <0.005 | <0.005 |
| SiO2 % | <0.02 | <0.02 | <0.02 | <0.02 | <0.02 |
| TiO2 % | <0.005 | <0.005 | <0.005 | <0.005 | <0.005 |
| Water Composition(wt%) | <1.0 | <1.0 | <1.0 | <1.0 | <1.0 |
| L.O.I(wt%) | <3.0 | <3.0 | <3.0 | <3.0 | <3.0 |
| D50(μm) | <1.0-5.0 | <1.0 | <1.0-1.5 | <1.0-1.5 | <120 |
| Surface area(m2/g) | 8-15 | 6-12 | 6-15 | 8-15 | 0-30 |
| Properties Type | Product types | |||
| Chemical Composition | Cerium stabilized ZrO2 | Magnesium stabilized ZrO2 | Calcium stabilized ZrO2 | Zircon aluminum composite powder |
| ZrO2+HfO2 % | 87.0±1.0 | 94.8±1.0 | 84.5±0.5 | ≥14.2±0.5 |
| CaO | ----- | ------ | 10.0±0.5 | ----- |
| MgO | ----- | 5.0±1.0 | ------ | ----- |
| CeO2 | 13.0±1.0 | ------ | ------ | ------ |
| Y2O3 % | ----- | ------ | ------ | 0.8±0.1 |
| Al2O3 % | <0.01 | <0.01 | <0.01 | 85.0±1.0 |
| Fe2O3 % | <0.002 | <0.002 | <0.002 | <0.005 |
| SiO2 % | <0.015 | <0.015 | <0.015 | <0.02 |
| TiO2 % | <0.005 | <0.005 | <0.005 | <0.005 |
| Water Composition(wt%) | <1.0 | <1.0 | <1.0 | <1.5 |
| L.O.I(wt%) | <3.0 | <3.0 | <3.0 | <3.0 |
| D50(μm) | <1.0 | <1.0 | <1.0 | <1.5 |
| Surface area(m2/g) | 3-30 | 6-10 | 6-10 | 5-15 |
Advantages
The product has good sintering performance, easy sintering, stable shrinkage ratio and good sintering shrinkage consistency;
The sintered body has excellent mechanical properties, high strength, hardness and toughness;
It has good fluidity, suitable for dry pressing, isostatic pressing, 3D printing and other molding processes
Zirconia Powder Applications
1. For small quantity, ZrO2 is packed in sample bags, aluminum vacuum bottle or bags or poly cacuum packing.
2. 5kg, 10kg. 25KG drum.
3. They are surrounded by bubble wrap to keep safety and sealed in cartons.
4. Packing can be customized to meet your need.
Founded in 1996, Zhengzhou Xinli Wear-resistant Materials Co. Ltd. Is a professional integrative enterprise specializing in R&D, producing, and selling various wear-resistant materials, such as white corundum powder, alumina powder, green silicon carbide powder, brown corundum powder, zirconium oxide,etc. Xinli Wear-resistant Materials has completed inspection equipment and quality control system,and obtained ISO9001:2015 quality management system certification.
